Aluminum Alloy Gas Medical Ceiling Pendant 800mm Length 340 Degree

Name: Aluminum Alloy Gas Medical Ceiling Pendant 800mm Length 340 Degree
Brand: AMBER
Price: 800 USD

Brand Name : AMBER

Model Number : AM-OPZ4

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD800 per set

Payment Terms : T/T

Supply Ability : 1000 set per month

Delivery Time : 5-8 days

Packaging Details : plywood case

Type : Medical Gas Equipments

Instrument classification : Class I

Product name : medical ceiling pendant

Warranty : 2 Years

Application : Surgery

Material : high-strength aluminum alloy

Color : blue/ white or customized

Power socket : 6 pieces

Gas outlet : Germany,UK,USA

Maxium load capacity : 160kg

Arm length : 750mm,800mm,1000mm

Contact Now

Gas Equipment Multifunctional Medical Operation Theatre Pendant Hospital Bridge Pendant

Model	KDD-3	KDD-4	KDD-13
Type	Double arm surgical pendant	single arm surgical pendant	electric single arm anesthesia pendant
Rotation angle	0-340°	0-340°	0-340°
Standard gas(customized) (American standard British standard European standard Japanese standard)	2pcs oxygen 2pcs vaccum 2 pcscompress air	2pcs oxygen 2pcs vaccum 2 pcscompress air	2pcs oxygen 2pcs vaccum 2 pcs compress air 1pcs Nitrous oxide 1pcs AGSS
Socket	8-10pcs	8-10pcs	8-10pcs
Internet port	1pcs	1pcs	1pcs
Adjustable tray	2pcs	2pcs	2pcs
Infusion support	1pcs	1pcs	1pcs
Drawer	1pcs	1pcs	1pcs

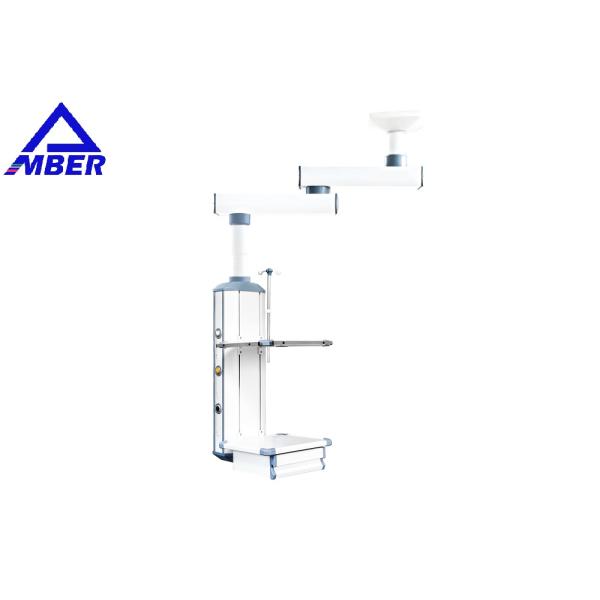

Aluminum Alloy Gas Medical Ceiling Pendant 800mm Length 340 Degree

The appearance is smooth, streamlined, without splicing gaps, and the surface is free of exposed screws, which meets the requirements of the hospital's special environment for products.

It has a bearing capacity of 220kg and will not deform under full load for a long time.

cantilever

It can rotate to increase the working coverage of the equipment and improve the use efficiency of the equipment; The adjustment and use are more convenient. The tower head and the bearing platform can only hover on the circumference of the cantilever radius, so the single cantilever is chosen as the operating room with small area. Rotation angle ≤ 340 °. Gas pipelines, cables and network communication lines all pass through here.

The distance between the support point and the force bearing point of this component is large, which requires high strength and deformation resistance of the part itself. In long-term load bearing use, if deformation occurs and the rotating mechanism is worn, it will cause the automatic "drift" of the tower and the tilt of the bearing platform. For this reason, our company has abandoned the traditional aluminum alloy materials for the cantilever, and selected high-strength die steel to ensure that no deformation and wear will occur under the long-term use of 220kg full load. In addition, we also use advanced anti-corrosion treatment inside and outside the products to ensure that no corrosion will occur during the service life.

Aluminum Alloy Gas Medical Ceiling Pendant 800mm Length 340 Degree

* DISCOUNT: 5-10% discount for first order
* LOWER MOQ: 1 set available
* FACTORY DIRECT: We are 15 years manufacturer for medical& clean room product in Guangdong
* OEM/ODM: All products data can be customized, and Customize customer brand LOGO
* COMPANY STRENGTH: We are the first factory to provide a full operating room solutions, and has the
operating room wall panelpatent in
